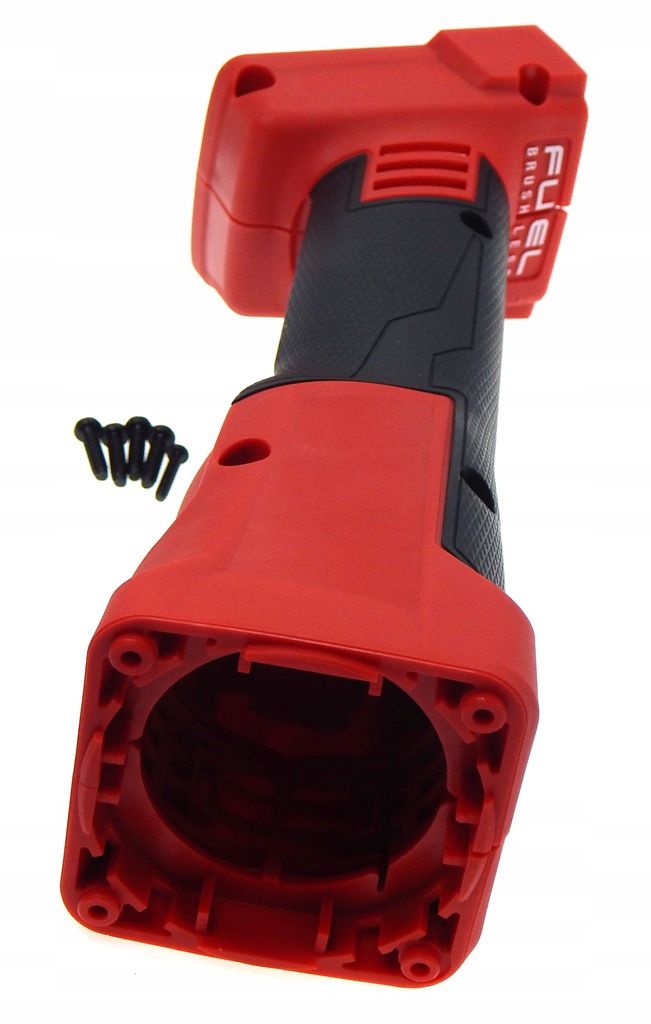

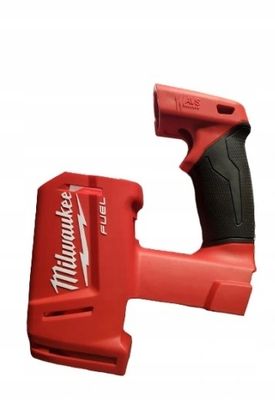

* Milwaukee - korpus / obudowa do akumulatorowej szlifierki M18CAG115 M18CAG125

Stan: nowy - oryginalny

( HOUSING / akumulatorowa / bezprzewodowa szlifierka kątowa 115MM / 125MM )

Nr katalogowy: 4931452766

EAN: 4002395169986

Zastosowanie w szlifierkach kątowych:

• M18CAG115 - XPDB0/XPDB0X/XPDB502X/XPDB502XGB2/XPDB502XIN2/XPDB902XIN2
• M18CAG115 - XPDB0/XPDB502XGB2/XPDB502XIN2
• M18CAG125 - XPDB0/XPDB0X/XPDB502X/XPDB502XIN2/XPDB902X
• M18CAG125 - XPDB0/XPDB0X/XPDB502XIN2/XPDB902X

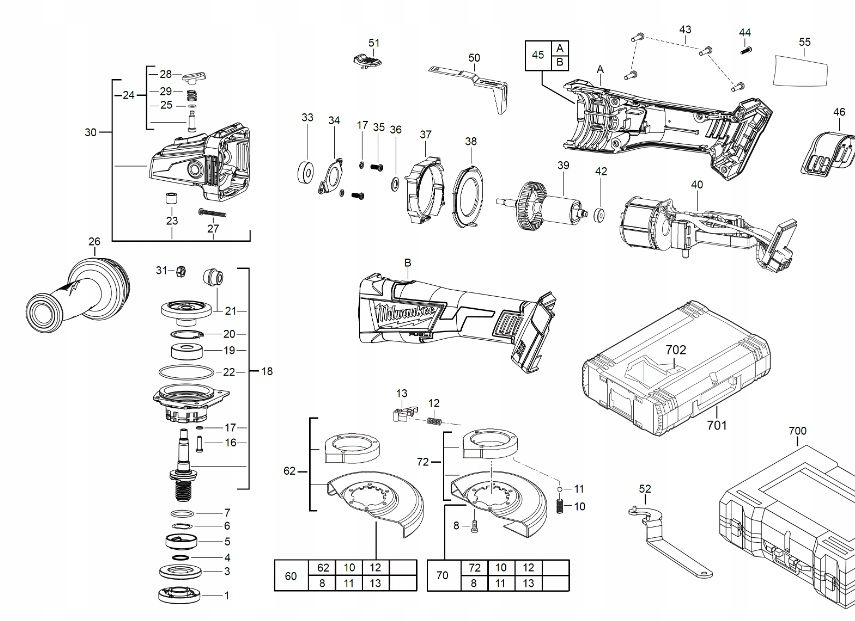

Pozycja na schemacie: nr 0051 - M18CAG125XPDB

Spis części do M18CAG125XPDB

pozycja na schemacie, ilość, opis produktu, nr katalogowy:

0001; 1; FIXTEC NUT P1 4932352473

0003; 1; FLANGE 4931435020

0004; 4; SCREW 660414013

0005; 6; PROTECTION WASHER 680866003

0006; 1; BALL BEARING 4931446467

0007; 1; O-RING 570699002

0008; 1; AUXILIARY HANDLE 4931435002

0009; 4; SCREW 4931435023

0011; 1; NUT 671686001

0013; 1; BEARING CAGE 672569001

0014; 2; SCREW 660400005

0015; 1; PLATE 4931436010

0016; 1; WASHER 5131000000

0017; 1; ARMATURE 5131000000

0018; 1; BALL BEARING 4931436014

0019; 1; AIR DEFLECTOR RING 4931436011

0022; 1; COVER PLATE 4931453199

0027; 1; LABEL 4931452775

0028; 4; SCREW 660024030

0029; 1; SCREW 4931453227

0030; 1; DUST GUARD CAP 4931436016

0040; 1; ELECTRONIC 5131000000

0041; 1; HOLDING RING 4931435476

0042; 1; BEVEL GEAR PAIR 4931436007

0044; 1; NEEDLE BEARING 4931446185

0045; 1; O-RING 4931435006

0046; 1; SPRING 4931435005

0047; 1; PUSH-BUTTON 4931452762

0048; 1; SPINDLE LOCK 4931452763

0049; 1; GEAR CASE 4931452764

0050; 1; PUSH-BUTTON 4931452765

0051; 1; HOUSING 4931452766

0052; 1; BALL BEARING 681337001

0053; 1; SPINDLE 4931452767

0054; 5; SCREW 4931435015

0055; 1; SPACER 5131000000

0056; 3; SPRING 4931435012

0057; 3; BALL 4931453238

0058; 1; SPRING 4931435010

0059; 1; LEVER 5131000000

0060; 1; GUARD CAP 4931466633

0061; 1; GUARD CAP 4931452770

0070; 1; GUARD CAP 4931452115

0071; 1; GUARD CAP 4931452772

0080; 1; ARMATURE 4931466720

0701; 1; HD Box 3 - 1pc 4932453386

0702; 1; HD Box Insert 17-1pc 4932453860

0700; 1; CARRYING CASE SIZE2 MET 4932383162
